SP-404 MKII+P-6·COMPANION
A touchscreen brain for your grooveboxes.
Compa is a Raspberry Pi app that gives the Roland SP-404 MKII and P-6 a real screen. Live FX and granular control, chromatic MIDI keyboard, recording with recall buffer, and a full kit-build pipeline that exports to Akai MPC, Akai Force, and Ableton Live.
Runs on
Pi 3B+ and up
Status
Free, open source
License
MIT
Get free updates on the project
Compa is free and open source. Drop your email for new features, device support, and releases. No spam.
Full walkthrough · 1 hour deep dive
Watch the full walkthrough right now.
Every screen, every feature, end to end — hardware picks, install, the session view, P-6 and SP-404 deep dives, the Push 2 integration, Ableton Link, Network MIDI, the recall buffer, MIDI mapping. The complete tour.
60-second tour
See the whole thing in a minute.
MIDI control, MIDI Fighter Twister mapping, internet radio capture, kits and sessions — every screen of Compa in 60 seconds, no narration, just the box doing what it does.
Record → Slice → Build → Push
One workflow, four stops.
Compa connects the whole beat-making loop — from capturing a sound on the box, to landing it inside your DAW — without leaving the touchscreen.
01
Record
Capture audio from any connected device. 60-second recall buffer — forgot to hit record, you still got it.
02

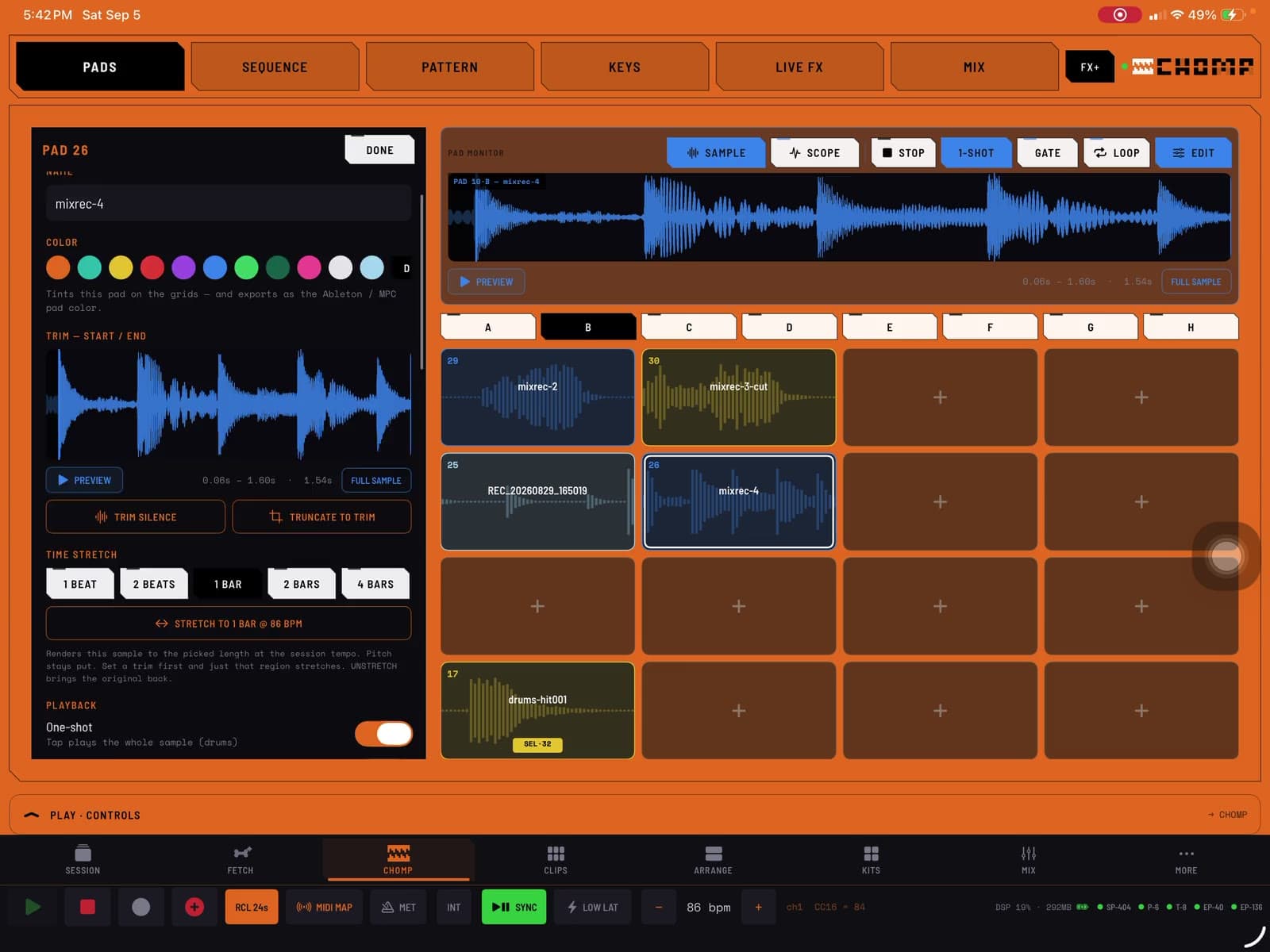

Slice
Visual waveform slicer with auto-detect. Place markers by ear or let Compa find the transients.
03
Build
Drop slices onto a 128-pad grid across 8 banks. Preview, rearrange, name.
04
Push
Export to Akai MPC (.xpm), Akai Force, or Ableton Live (.adg). Push over USB or the network.

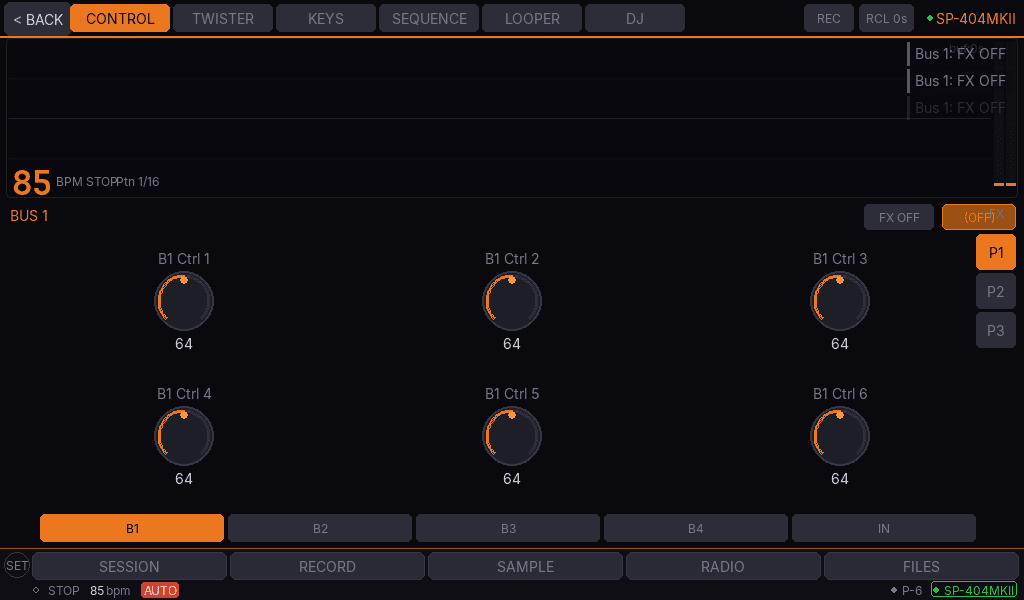

SP-404 MKII Workspace
Live FX in the orange.
Compa mirrors the SP-404's 5-bus architecture — Bus 1–4 plus Input FX — with full knob control, per-bus FX chain editing, and a Twister grid that lets you slam effects from 16 knobs with color feedback. The sequencer, looper, and DJ mode are all right there.

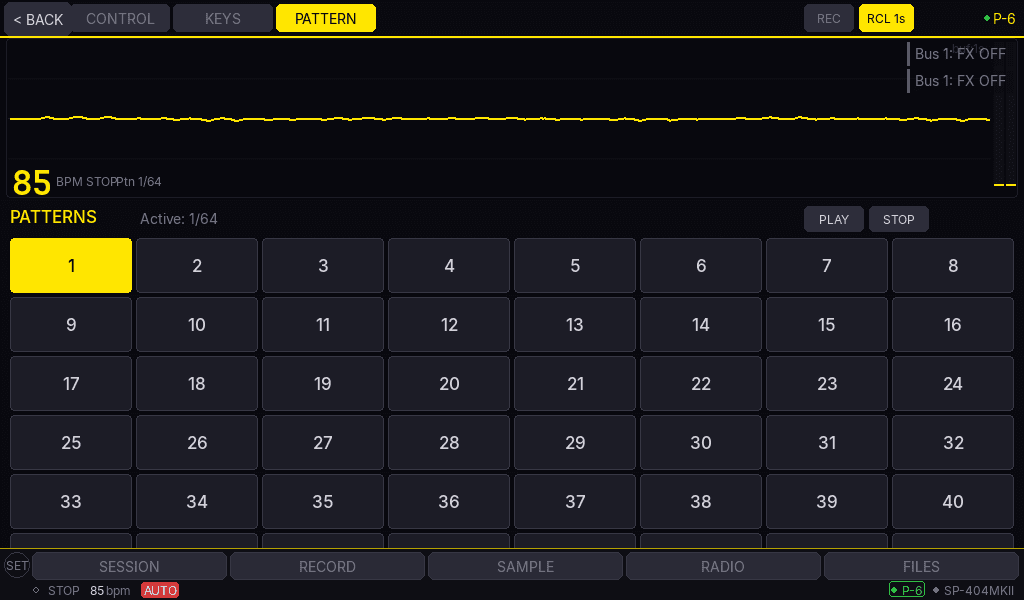

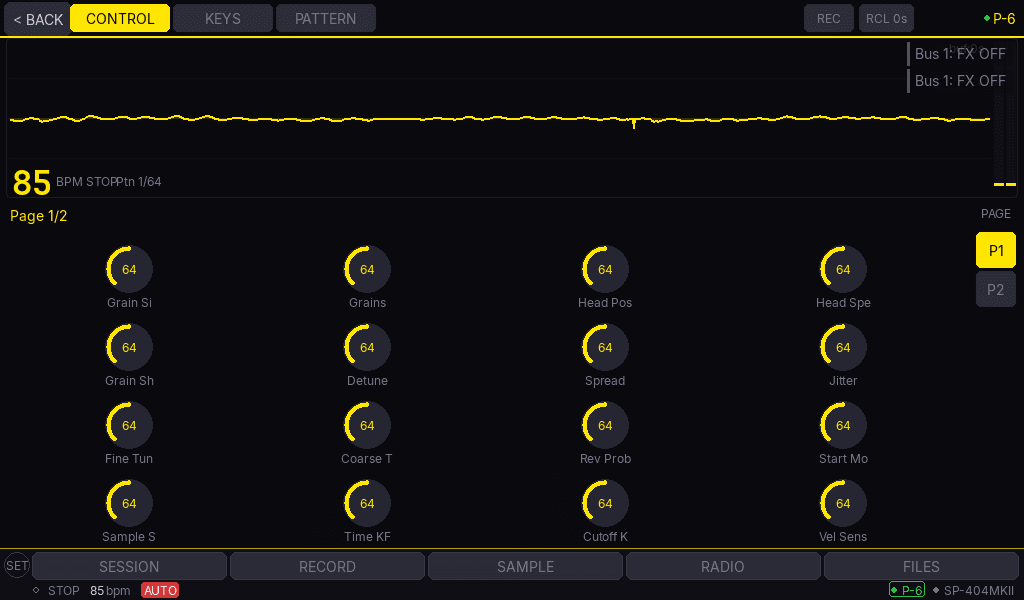

P-6 Workspace
Granular without the menu-diving.
The P-6's granular engine is the reason you bought it, but the hardware interface makes tweaking it a chore. Compa gives you the full 14-parameter engine on one screen, pattern selection without scrolling, and a chromatic keyboard that plays your current pad across two octaves.
MIDI controller support
Plug in any MIDI keyboard. Plug in a Twister. Compa adapts.
Compa auto-detects any USB MIDI device within 2 seconds. Known controllers get deep integrations — the Midi Fighter Twister, ATOM SQ, and Spectra all have dedicated routing. Everything else is treated as a chromatic keyboard that plays the focused device melodically.
Midi Fighter Twister — SP-404 page
K1
To-Gu-Ro
K2
Scatter
K3
Tape Echo
K4
Ko-Da-Ma
K5
Downer
K6
Ha-Dou
K7
Zan-Zou
K8
Stopper
K9
Reverb
K10
Vinyl Sim
K11
Crusher
K12
Filter+Drive
K13
JUNO Chorus
K14
Cassette
K15
Isolator
K16
Flanger
Press a knob → load that FX on the bus. Turn → sweep the effect. LED color = effect family. Switch to P-6 and the same 16 knobs now control the granular engine.
Midi Fighter Twister — P-6 page
K1
Position
K2
Size
K3
Density
K4
Pitch
K5
Spray
K6
Reverse
K7
Freeze
K8
Filter Cutoff
K9
Filter Reso
K10
Envelope A
K11
Envelope D
K12
LFO Rate
K13
LFO Depth
K14
Pan
K15
dynamic
K16
dynamic
14 knobs for the full granular engine, 2 dynamic slots that adapt per screen. Every tweak sends CC on the P-6's Auto channel, so it's captured as automation.

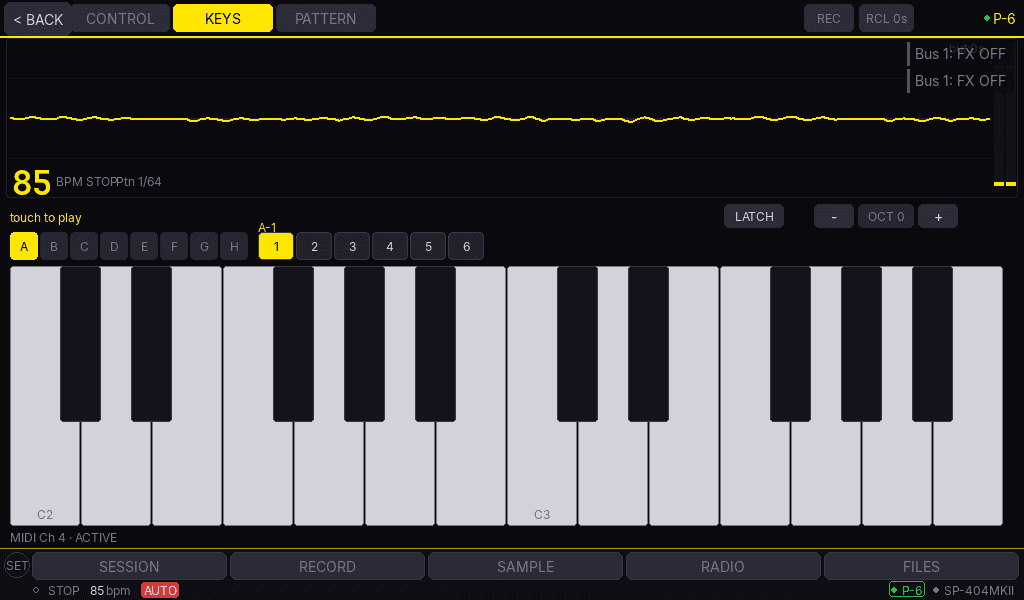

Chromatic keyboard
Two-octave range, pad selector across all banks, LATCH mode, octave shift ±3, touch-to-play when no keyboard is plugged in. The blue key marks the sample's natural pitch. Routes to SP-404 Ch16 or P-6 Ch4 based on focus.
Everything on the box
Real features. Already in the repo.

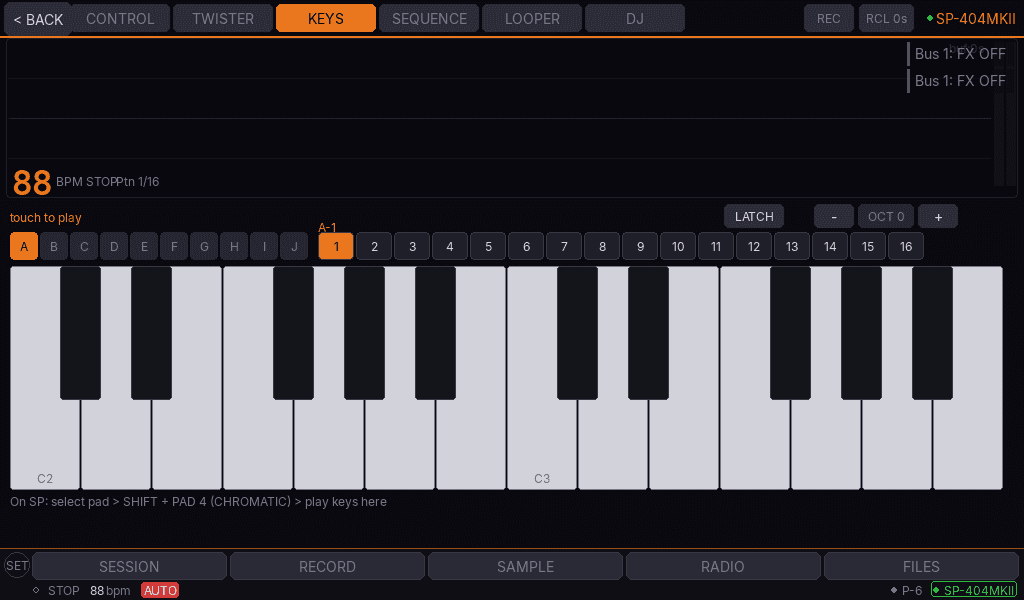

Chromatic keyboard
Plug in any USB MIDI keyboard — Alesis, Arturia, AKAI, Novation. Play any SP-404 pad or P-6 sample melodically across two octaves with a visual piano, latch mode, octave shift, and touch-to-play.
Midi Fighter Twister
Deep integration. 16 knobs with RGB feedback — SP-404 FX slots on one page, P-6 granular parameters on another. Press to activate, turn to sweep. Auto-retargets when you switch focus.

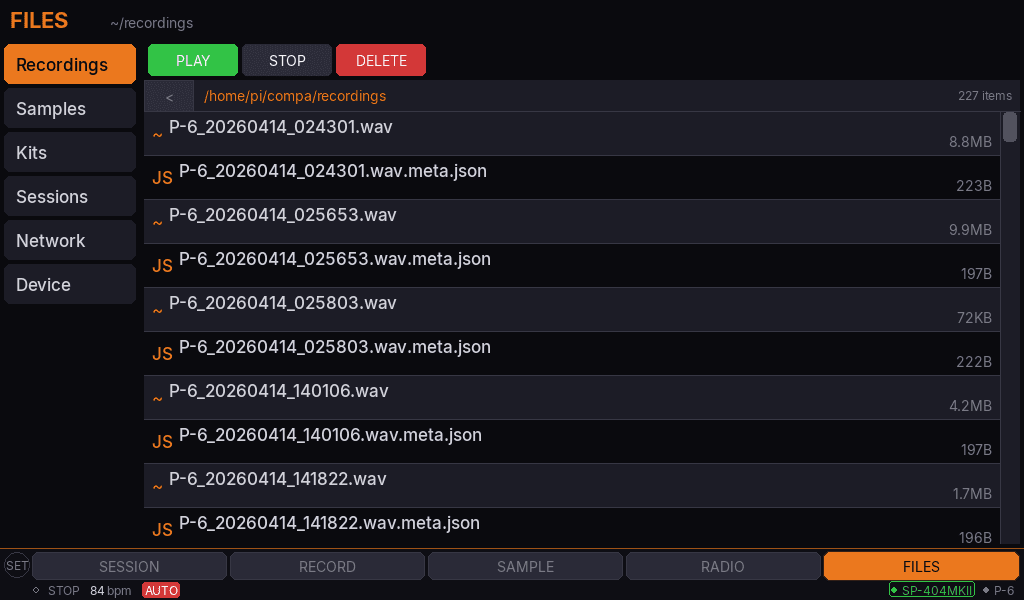

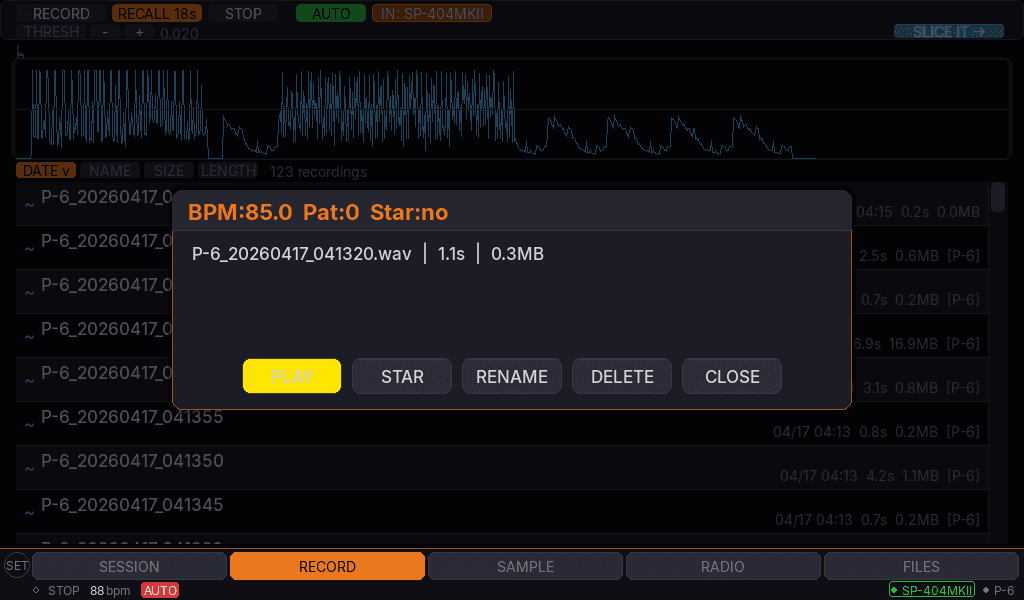

Recording & recall
Every take from every connected device lands in one browser. 60-second recall buffer grabs the last minute even if you forgot to hit record. BPM auto-detect, threshold recording, star/rename/delete.

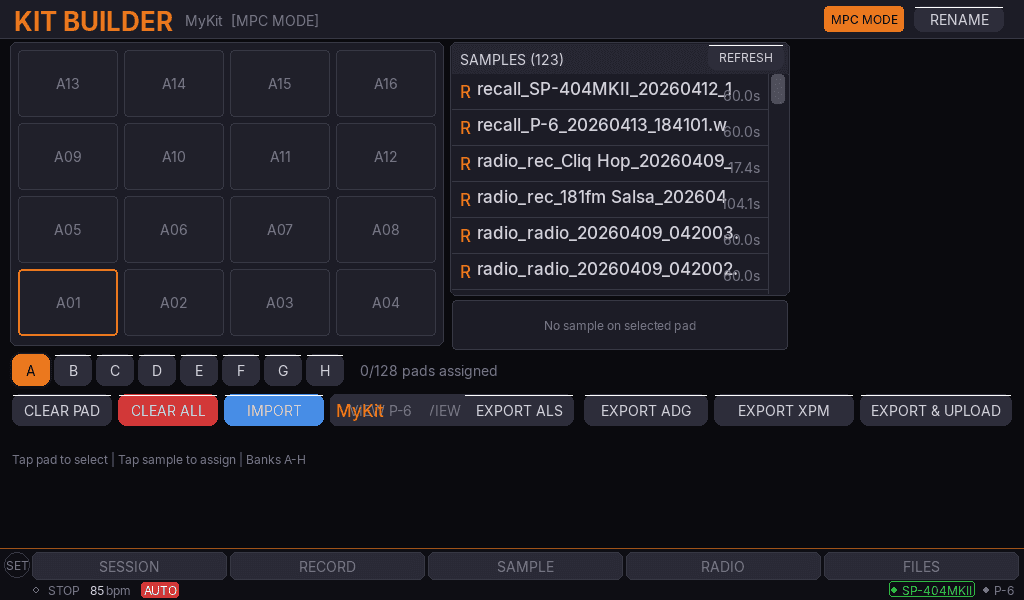

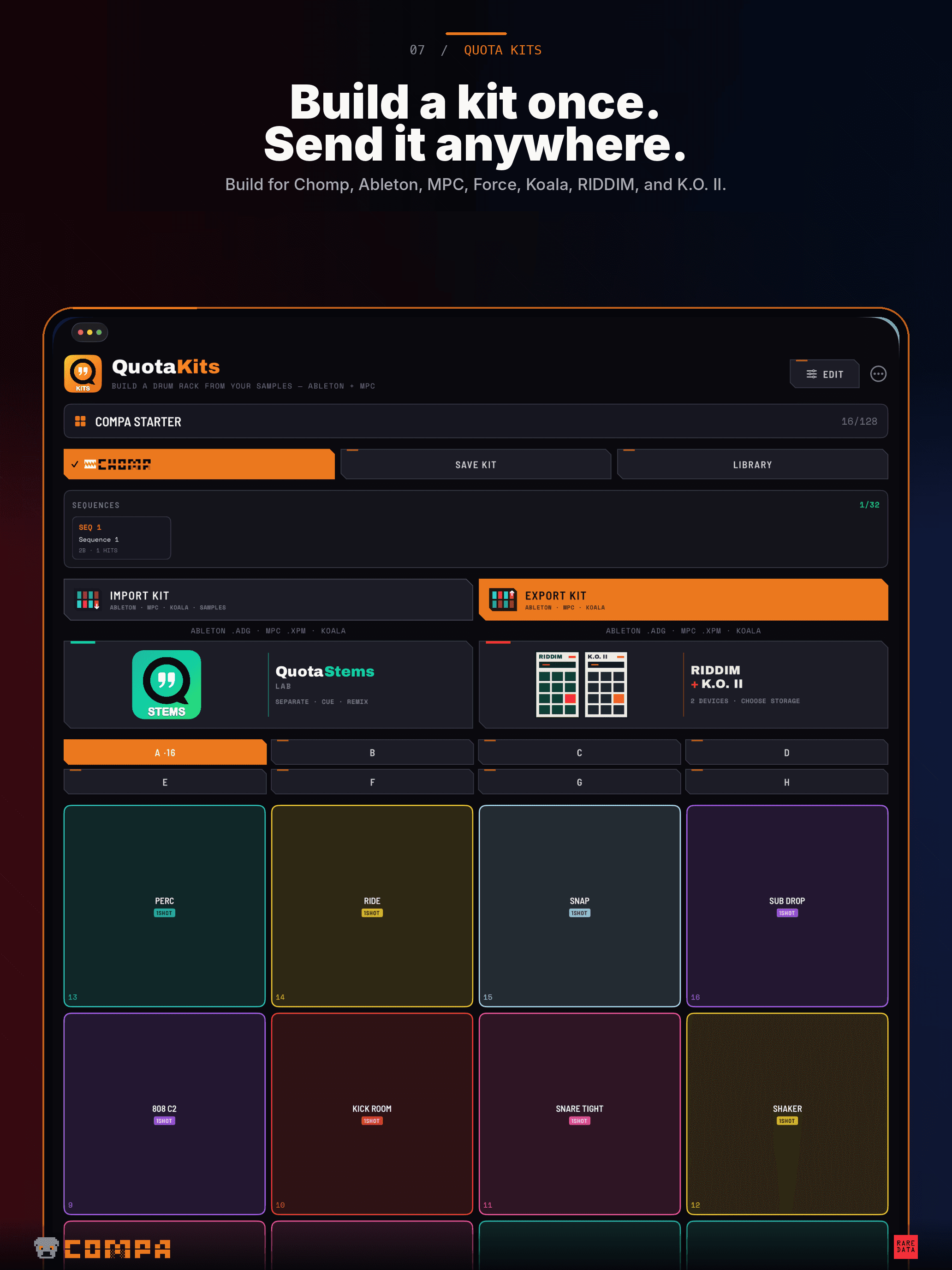

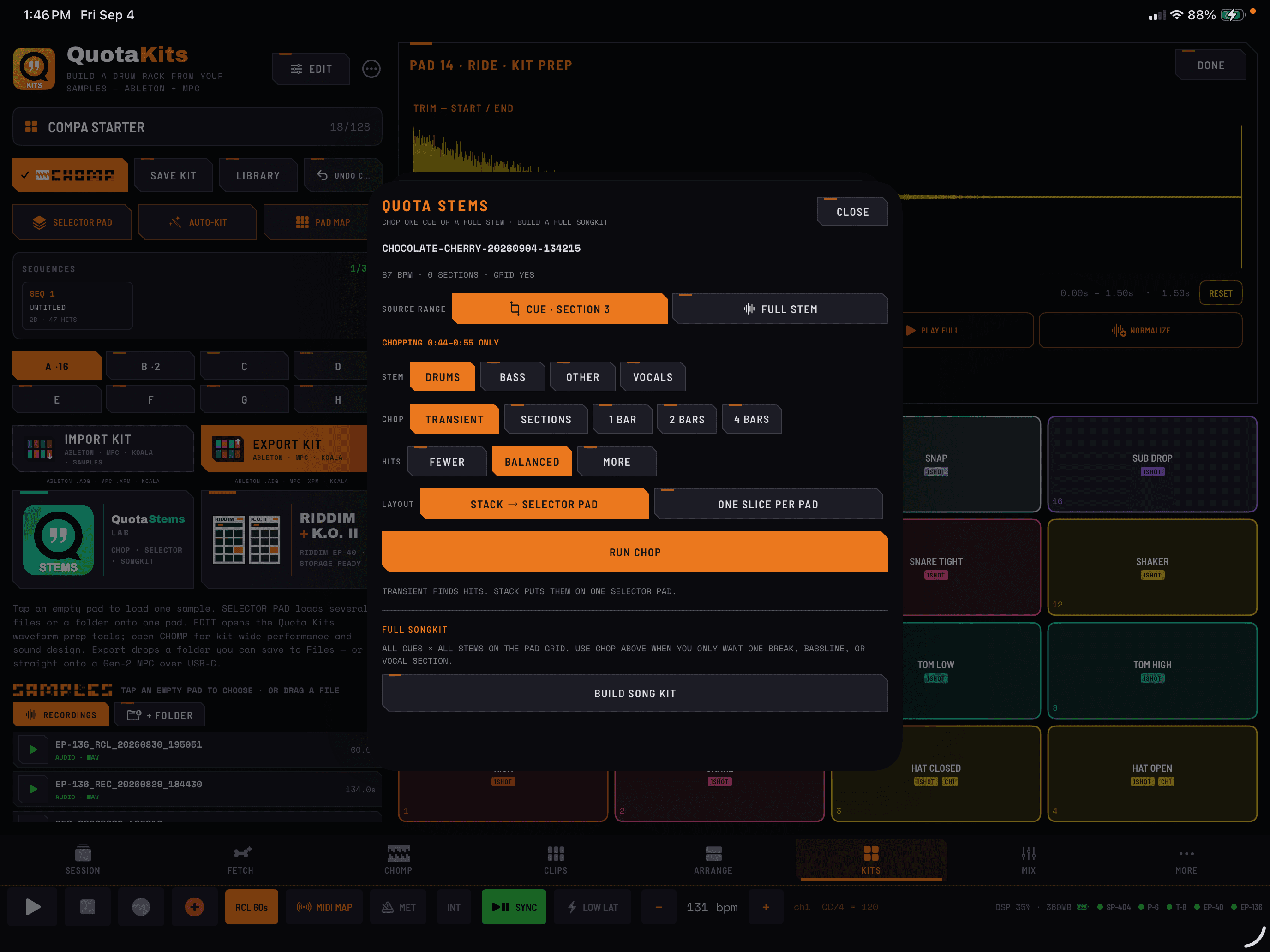

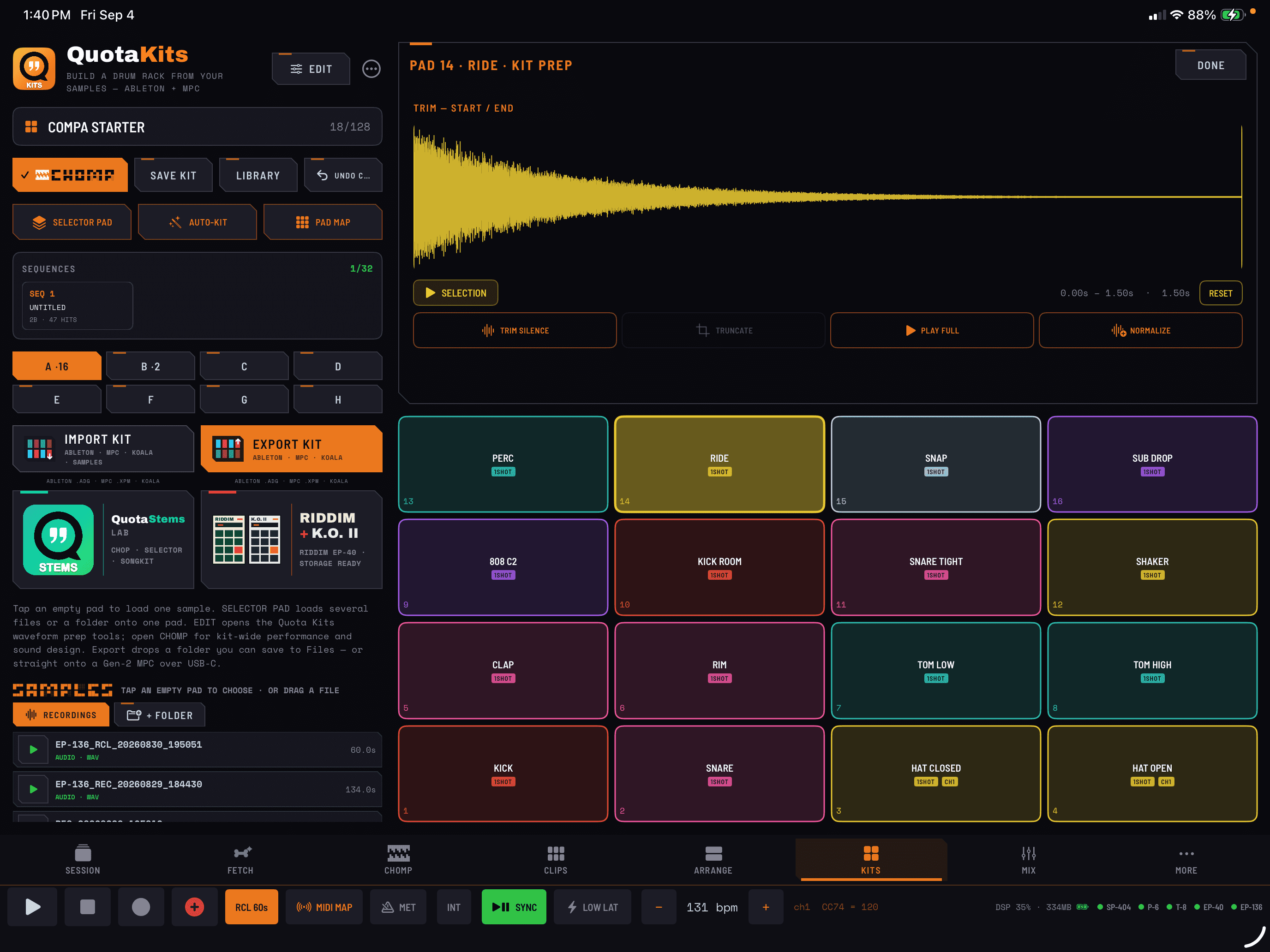

Kit builder + export
128 pads across 8 banks. Drag samples on, preview, rearrange, export. Targets Akai MPC (.xpm), Akai Force, and Ableton Live (.adg). Smart auto-import from slice markers.

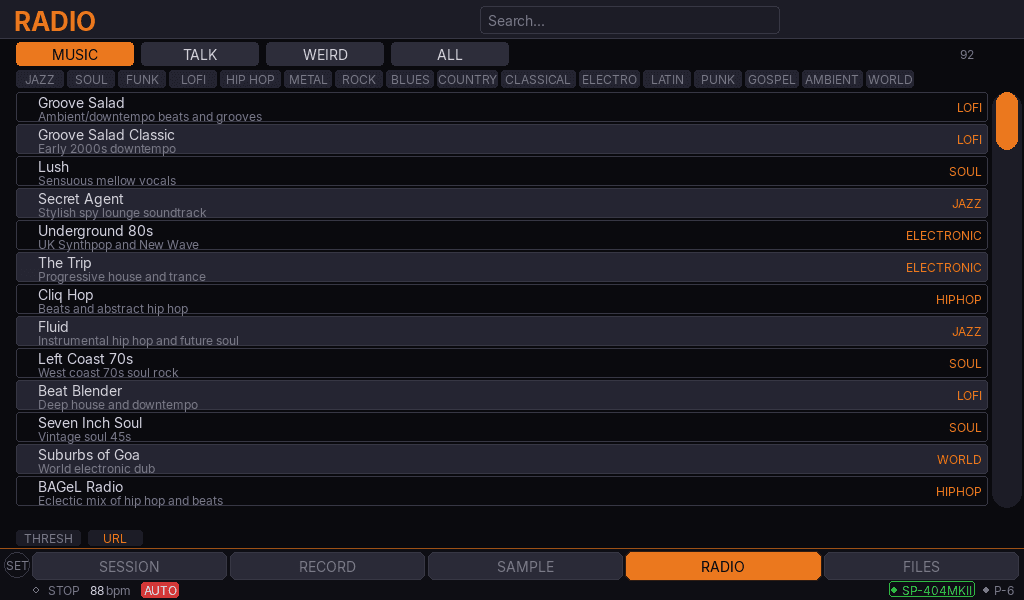

Internet radio capture
Built-in browser for 90+ curated stations — jazz, lo-fi, hip-hop, ambient, world. Route the stream into any connected device for instant resampling.
Network transfer
Compa-to-Compa peer discovery over mDNS. Send recordings, kits, or samples between Compas on the same LAN without cables. SMB share for Mac/PC too.

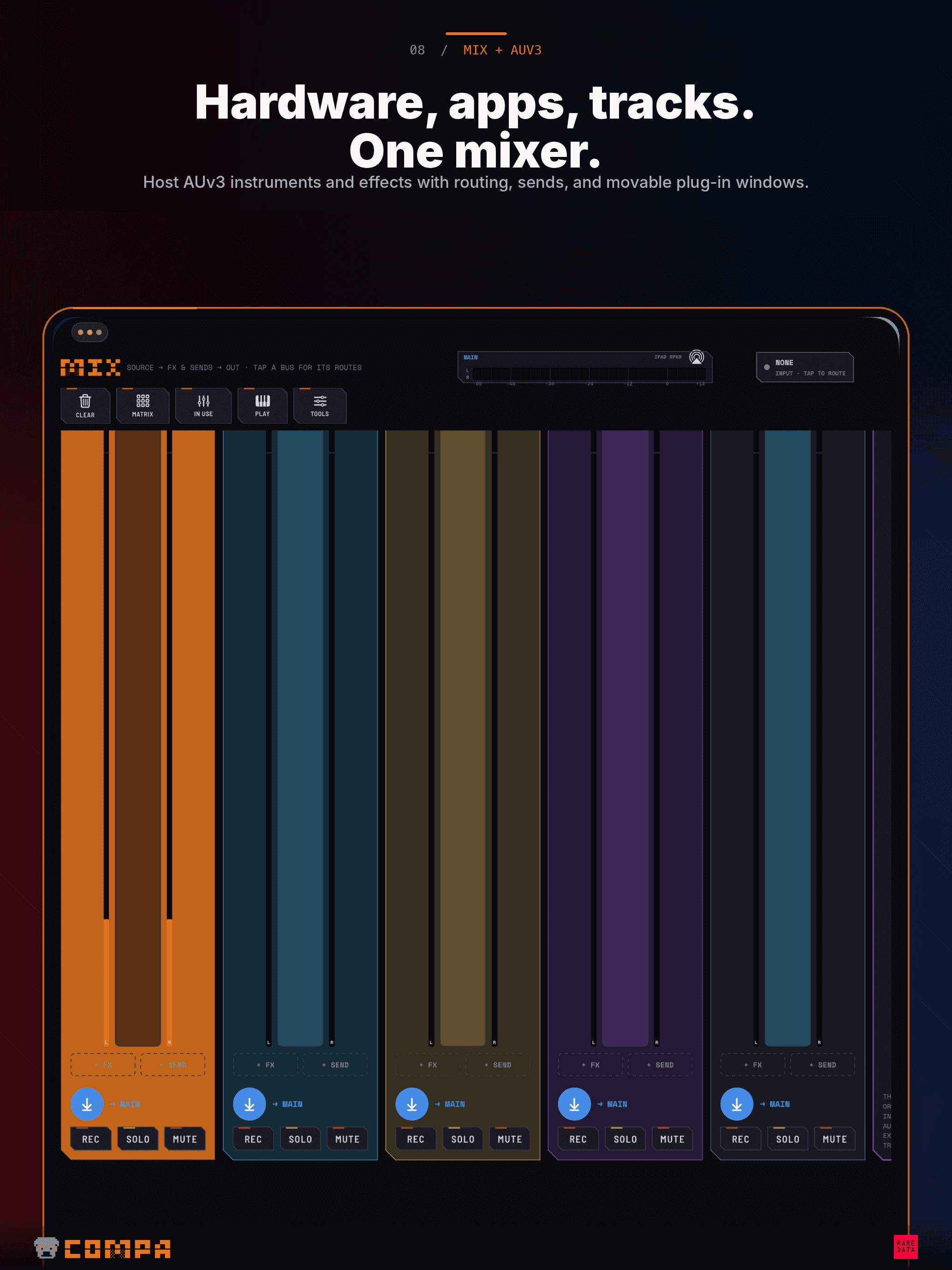

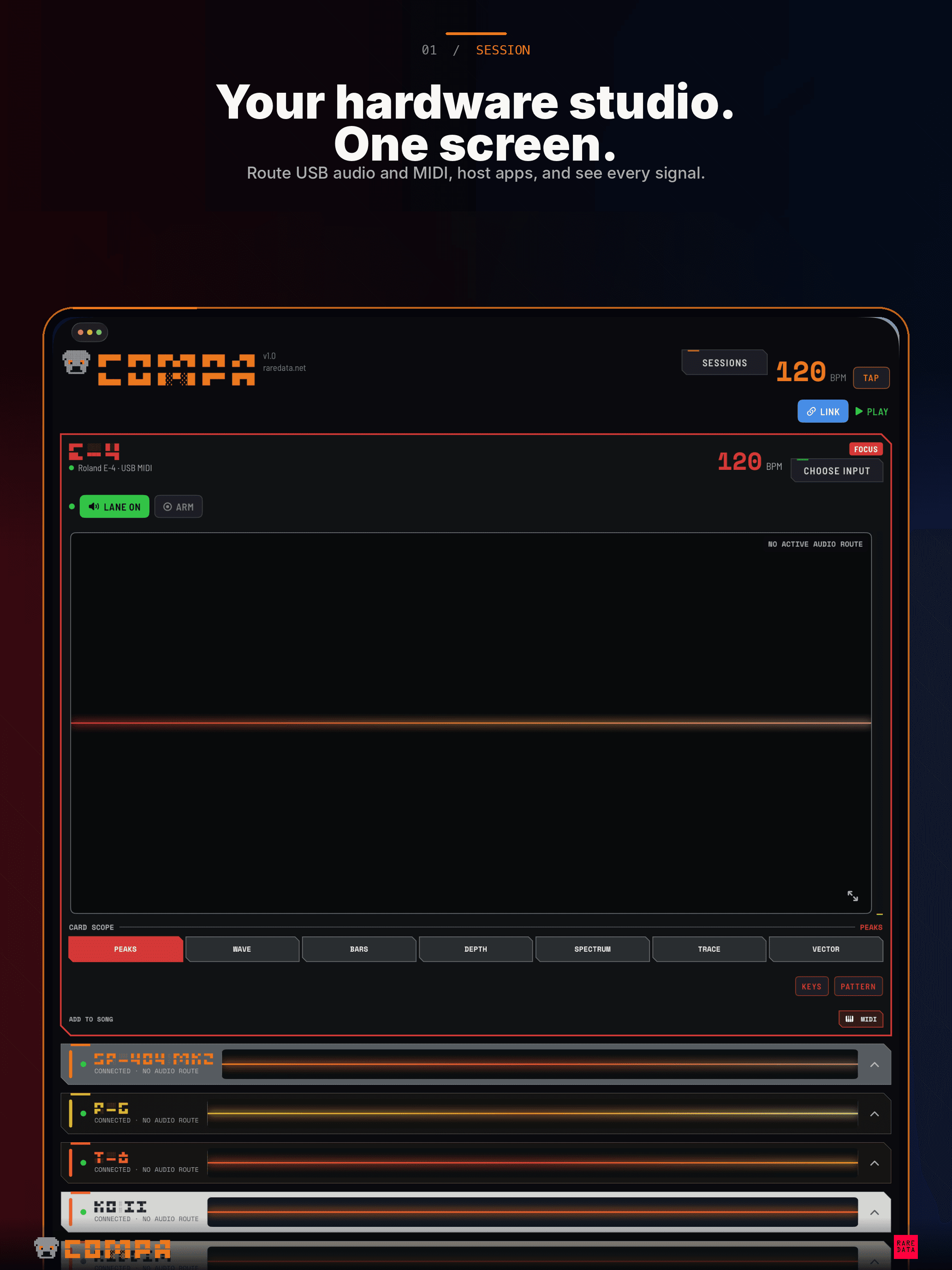

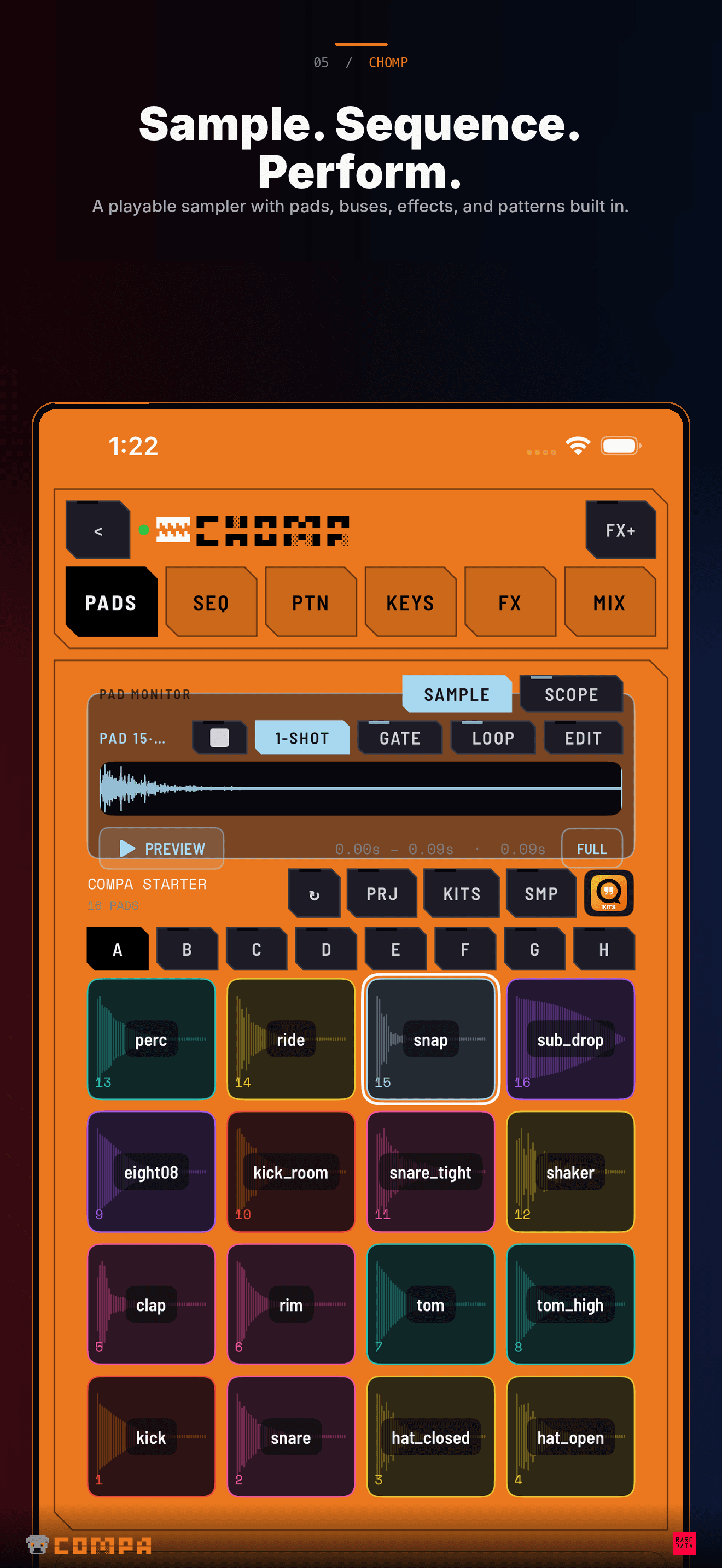

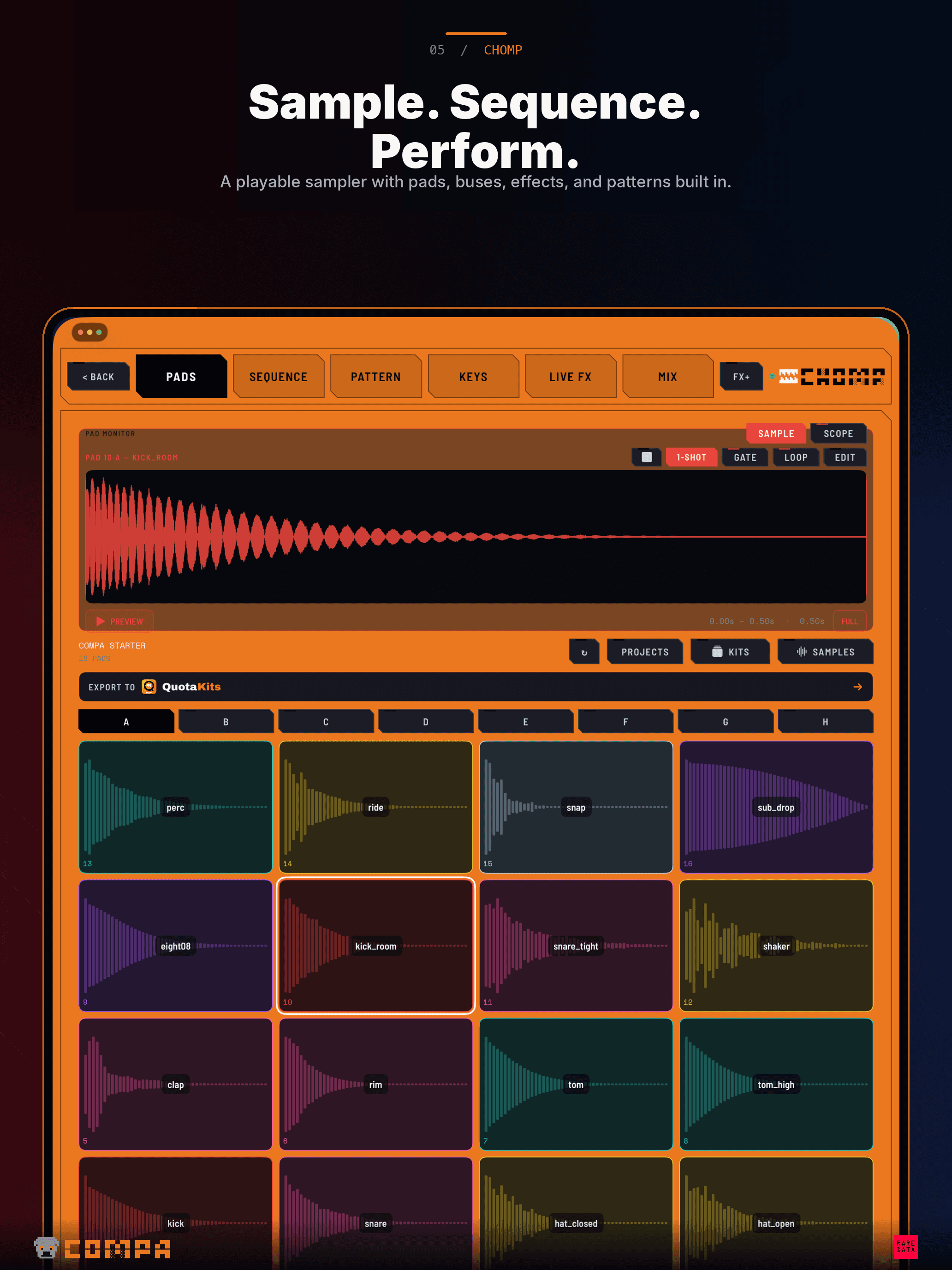

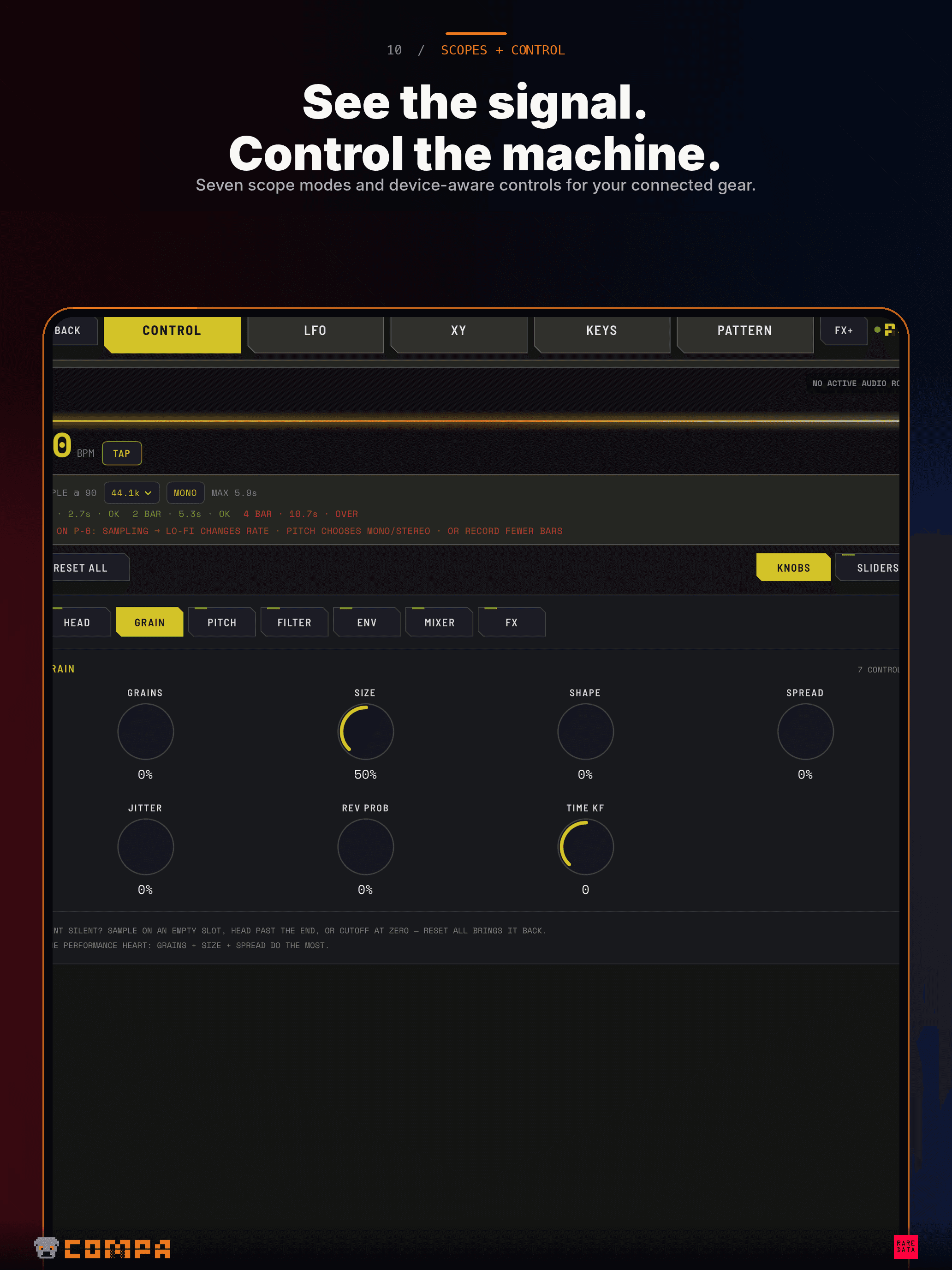

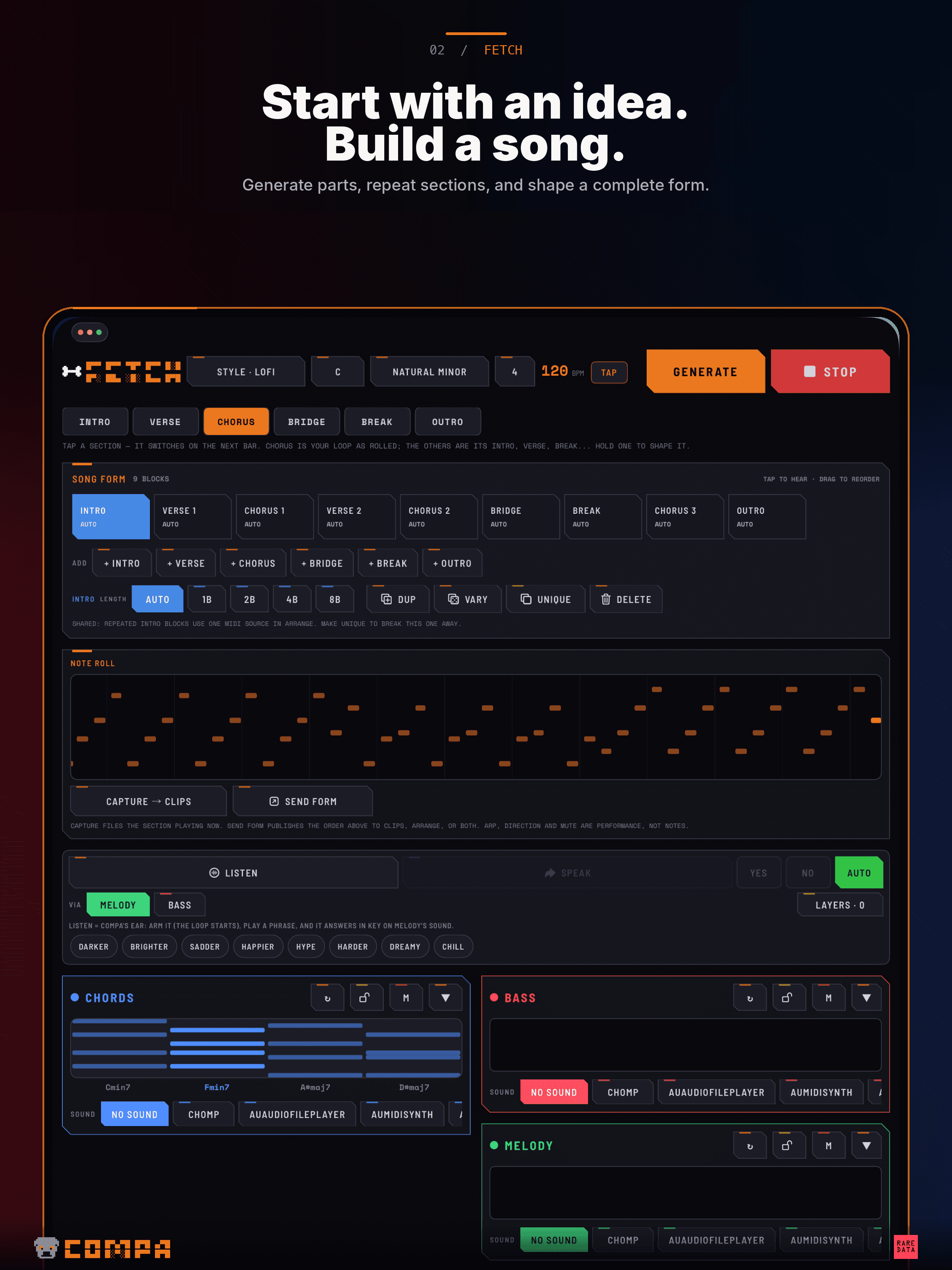

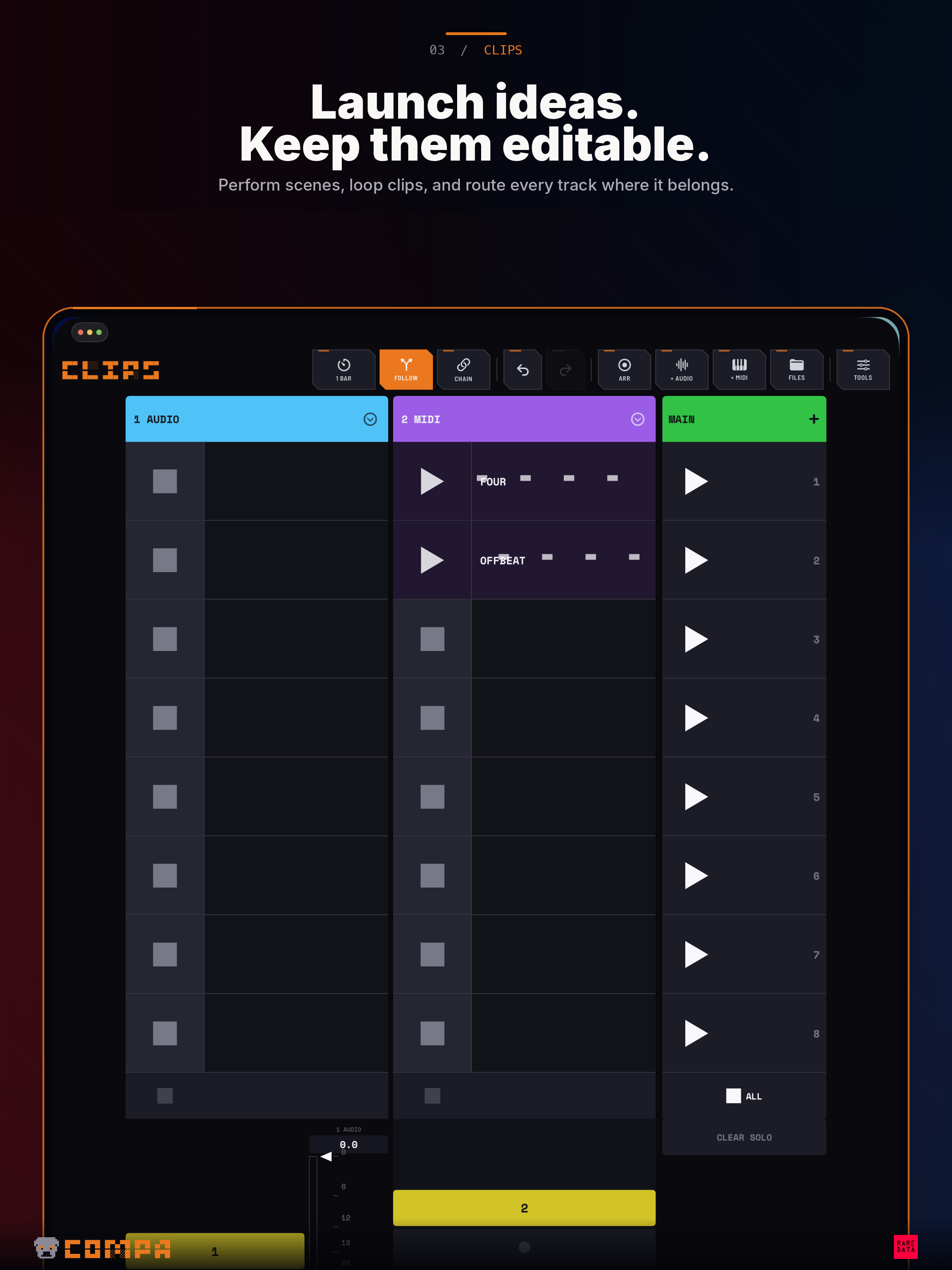

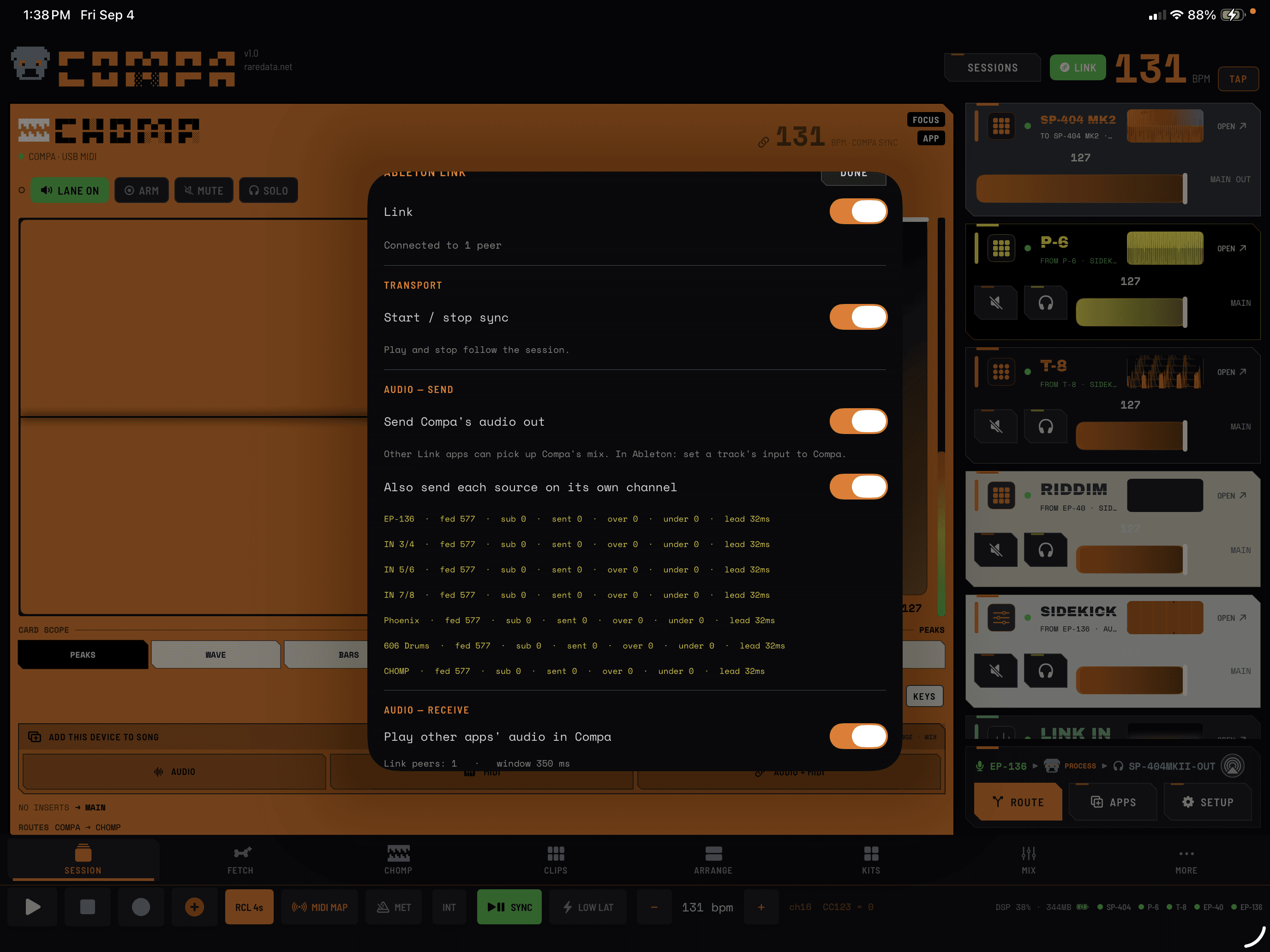

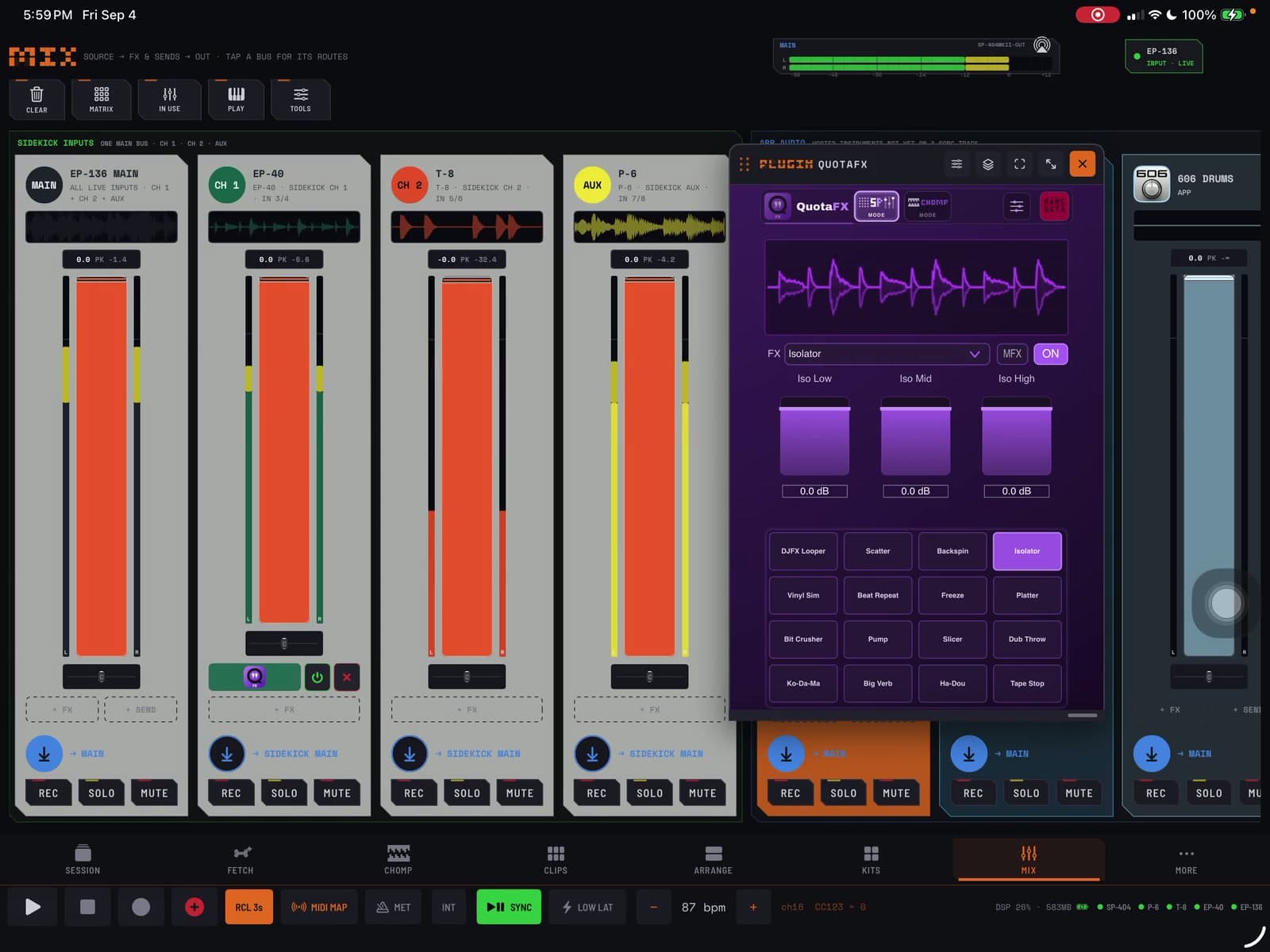

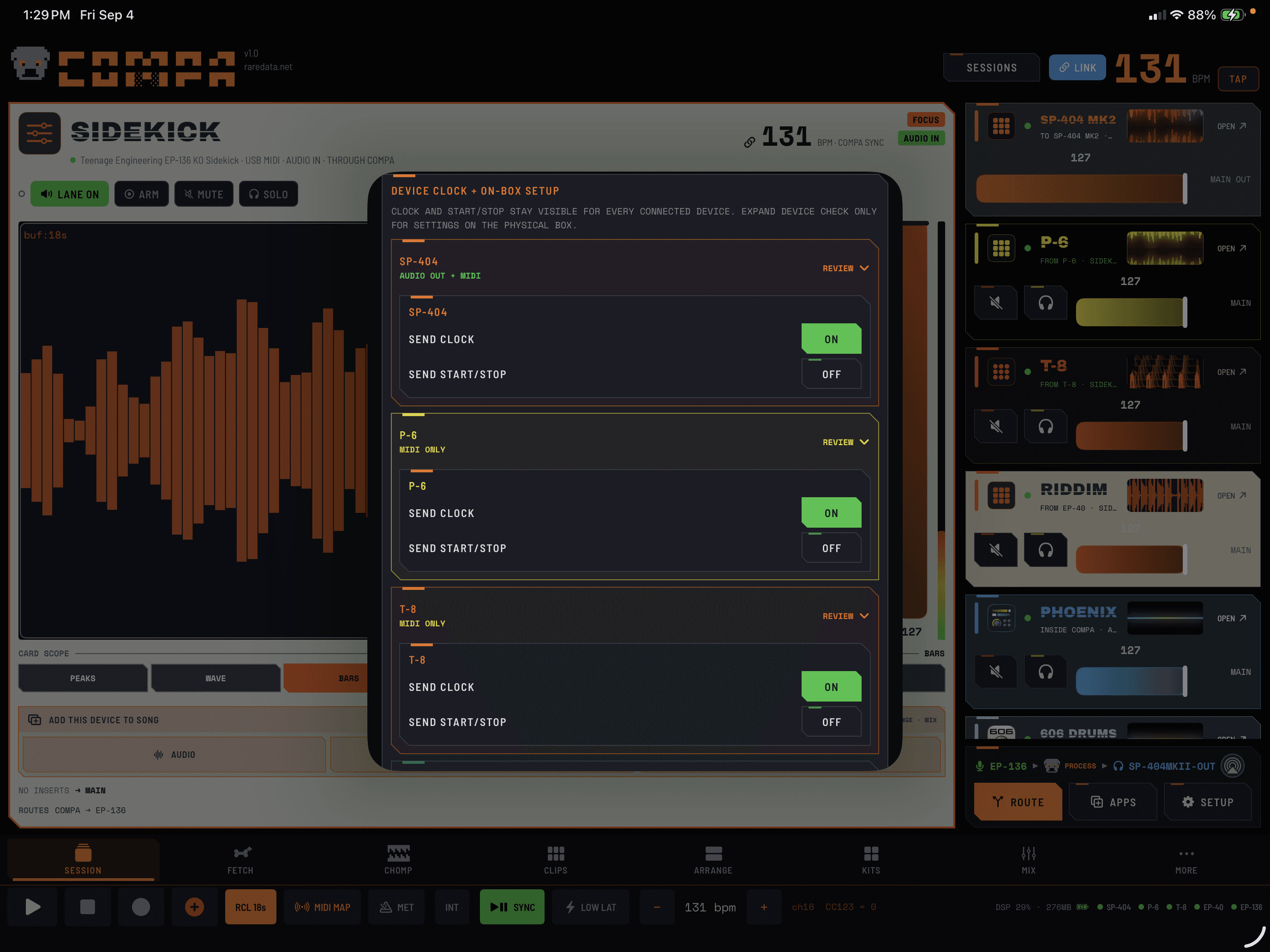

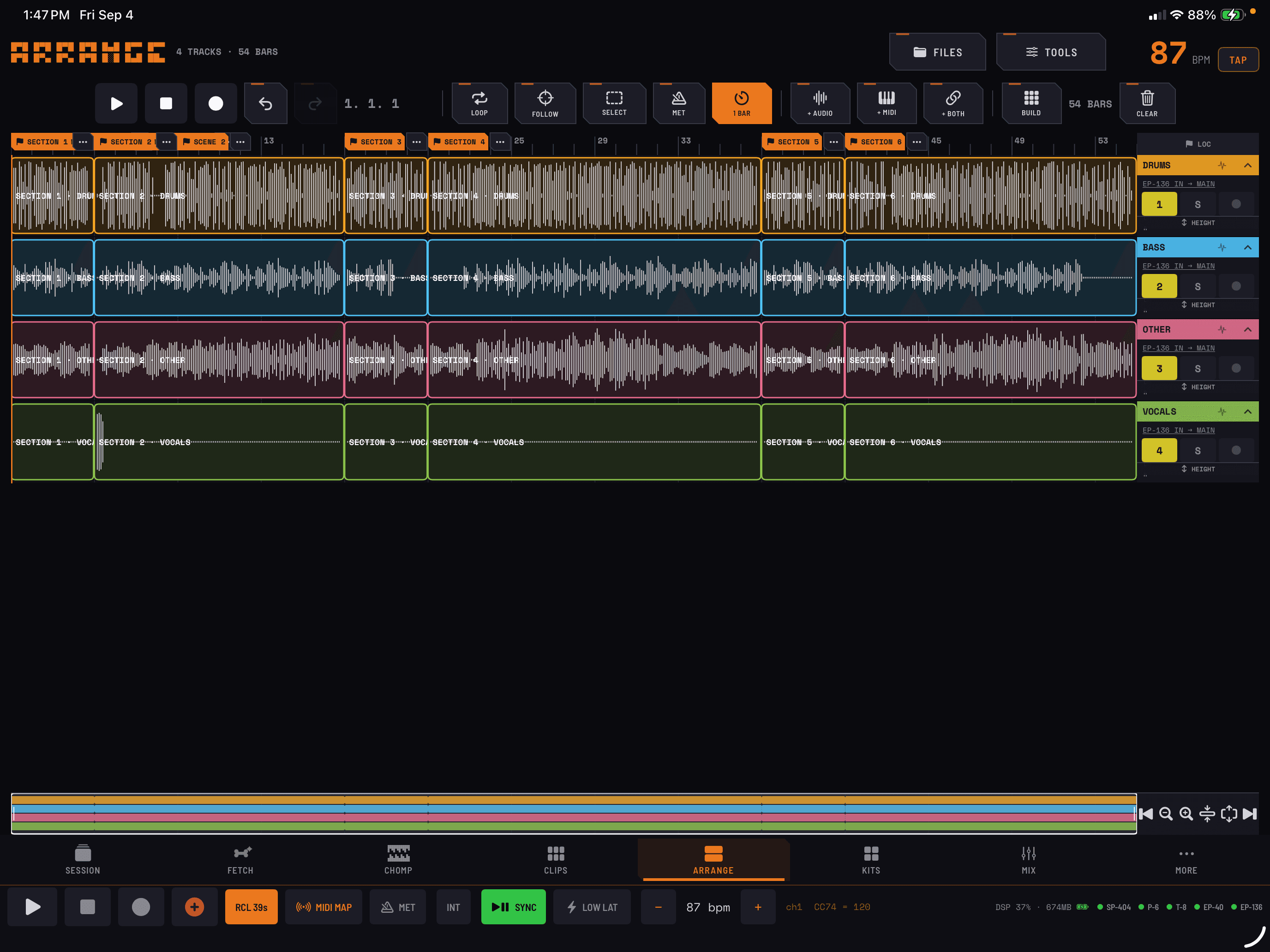

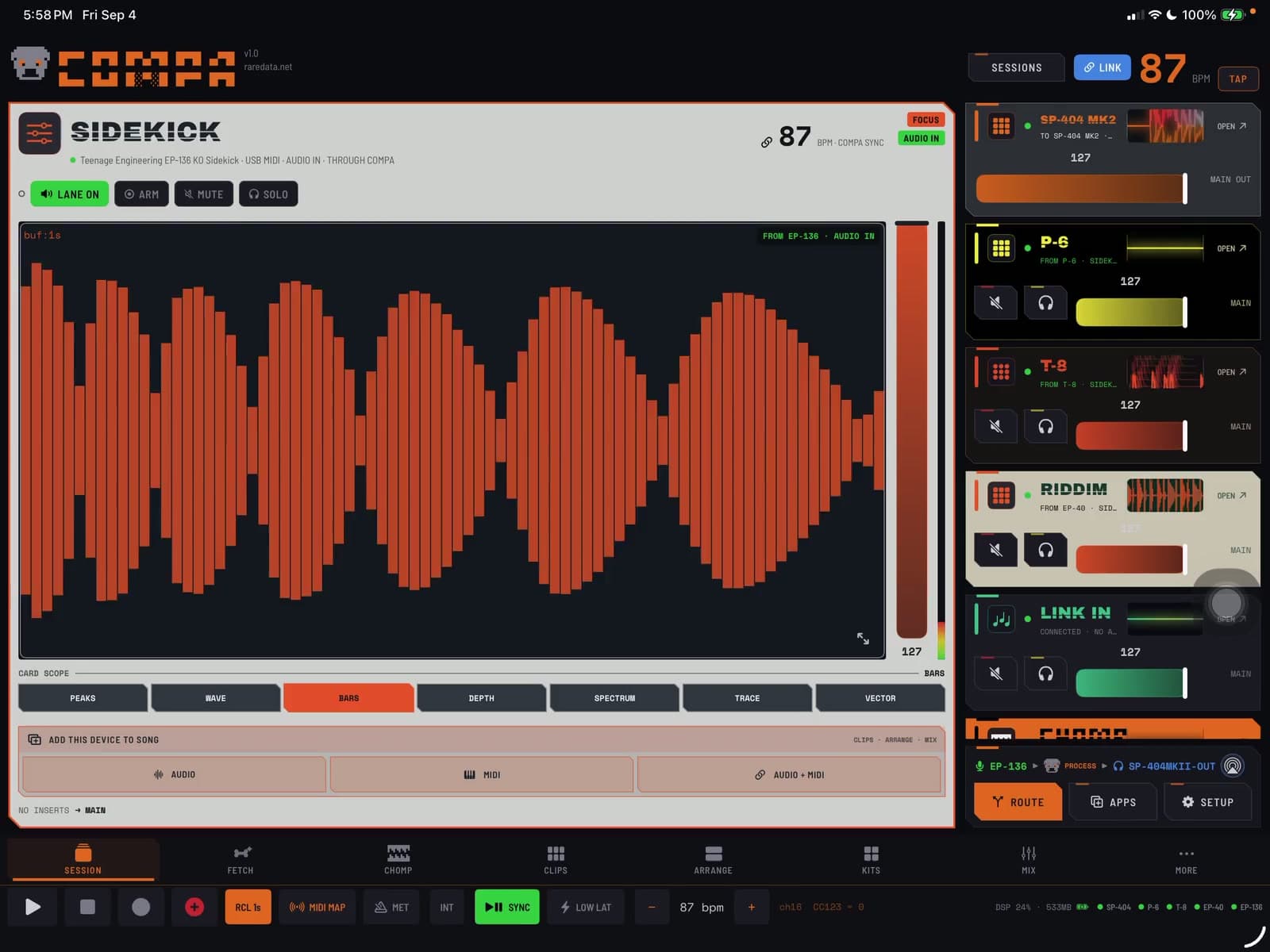

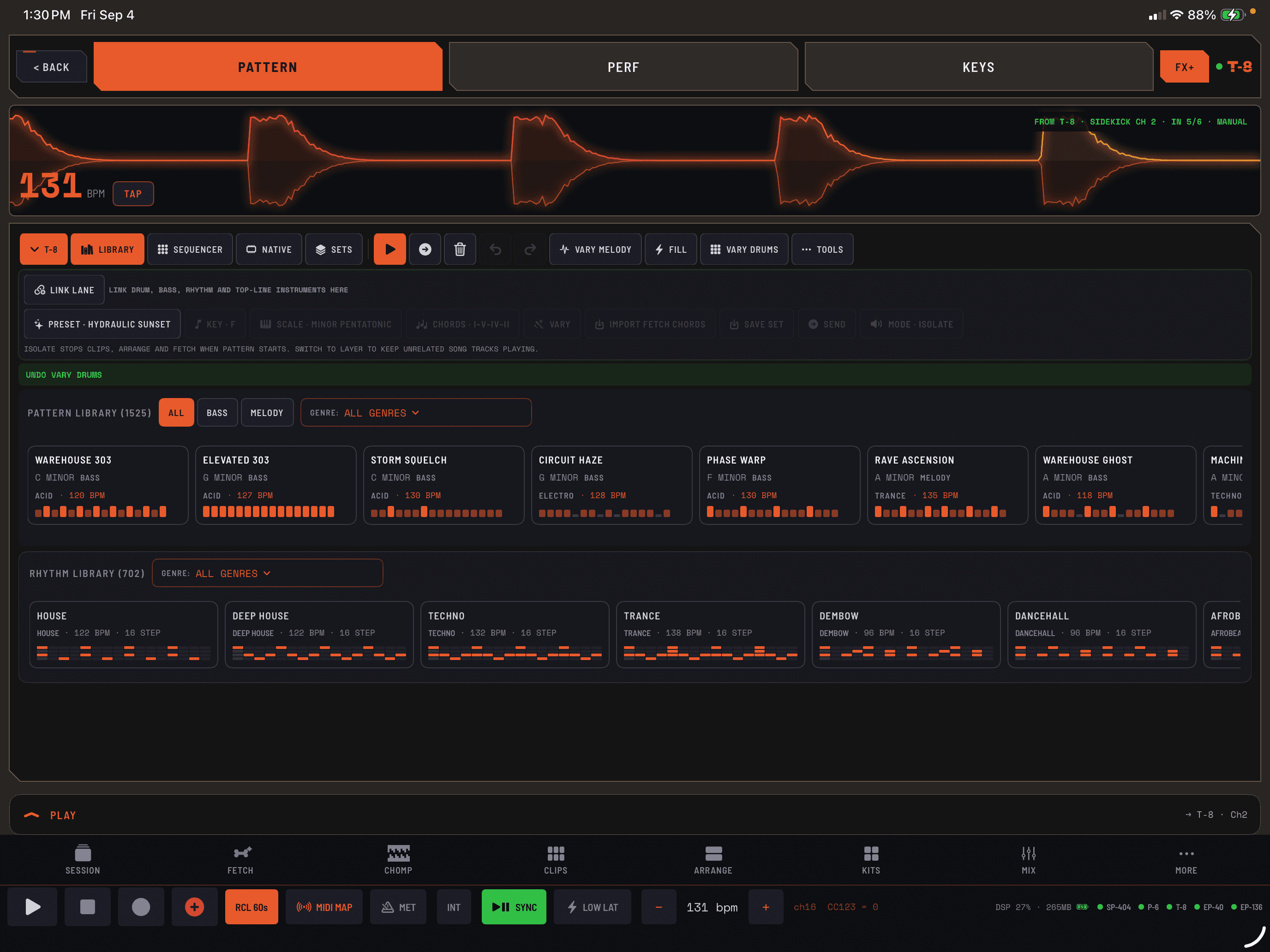

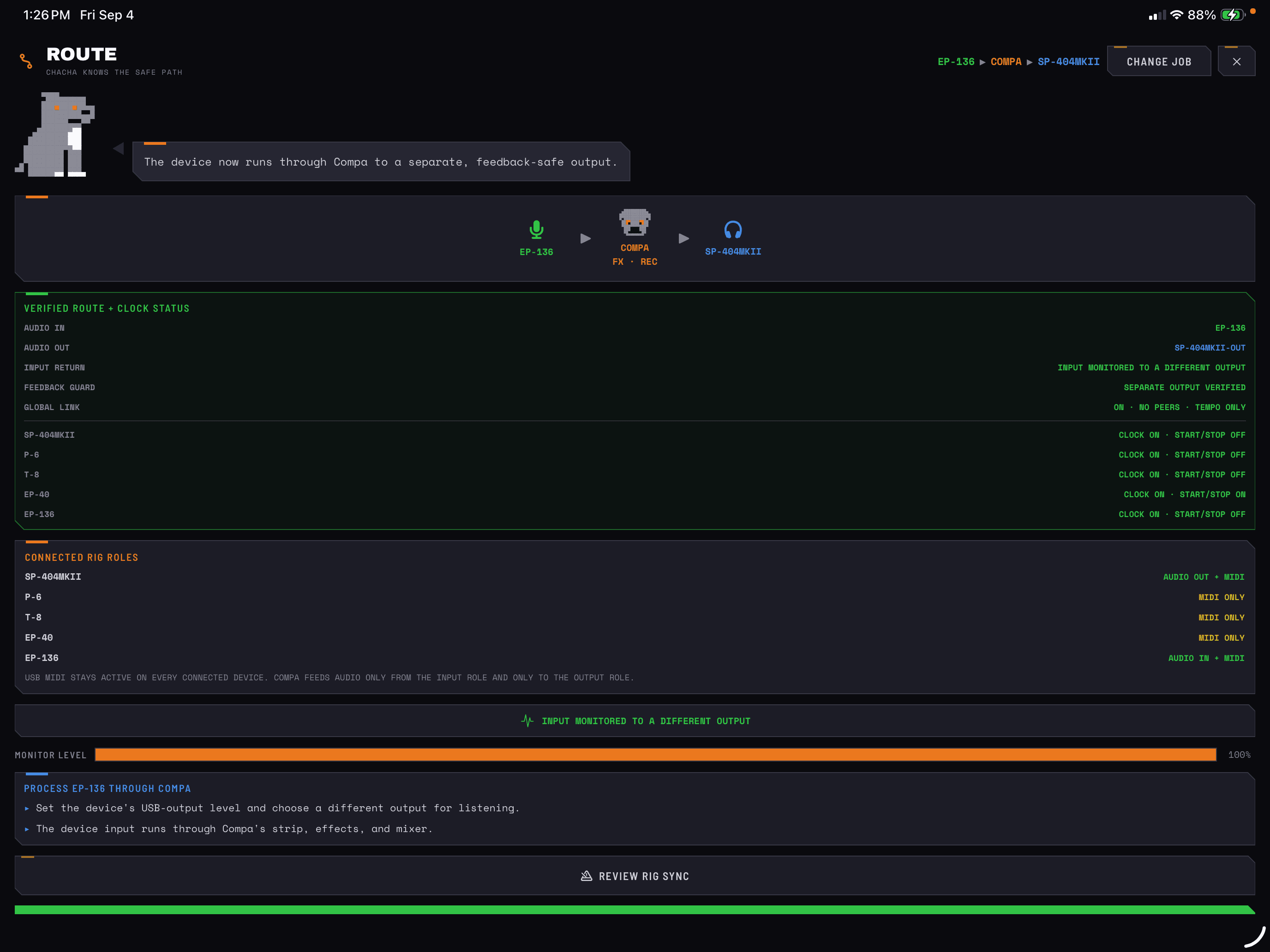

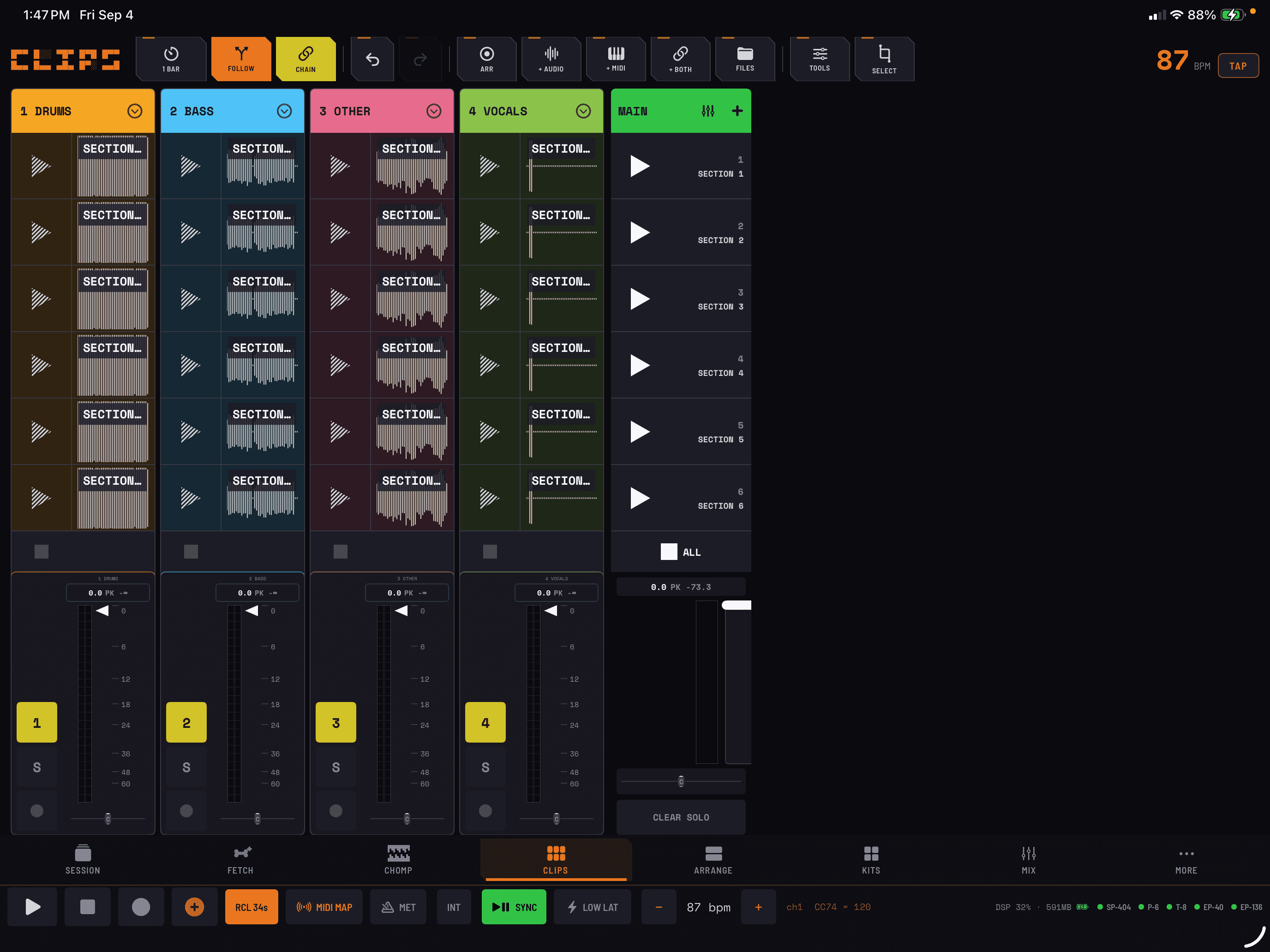

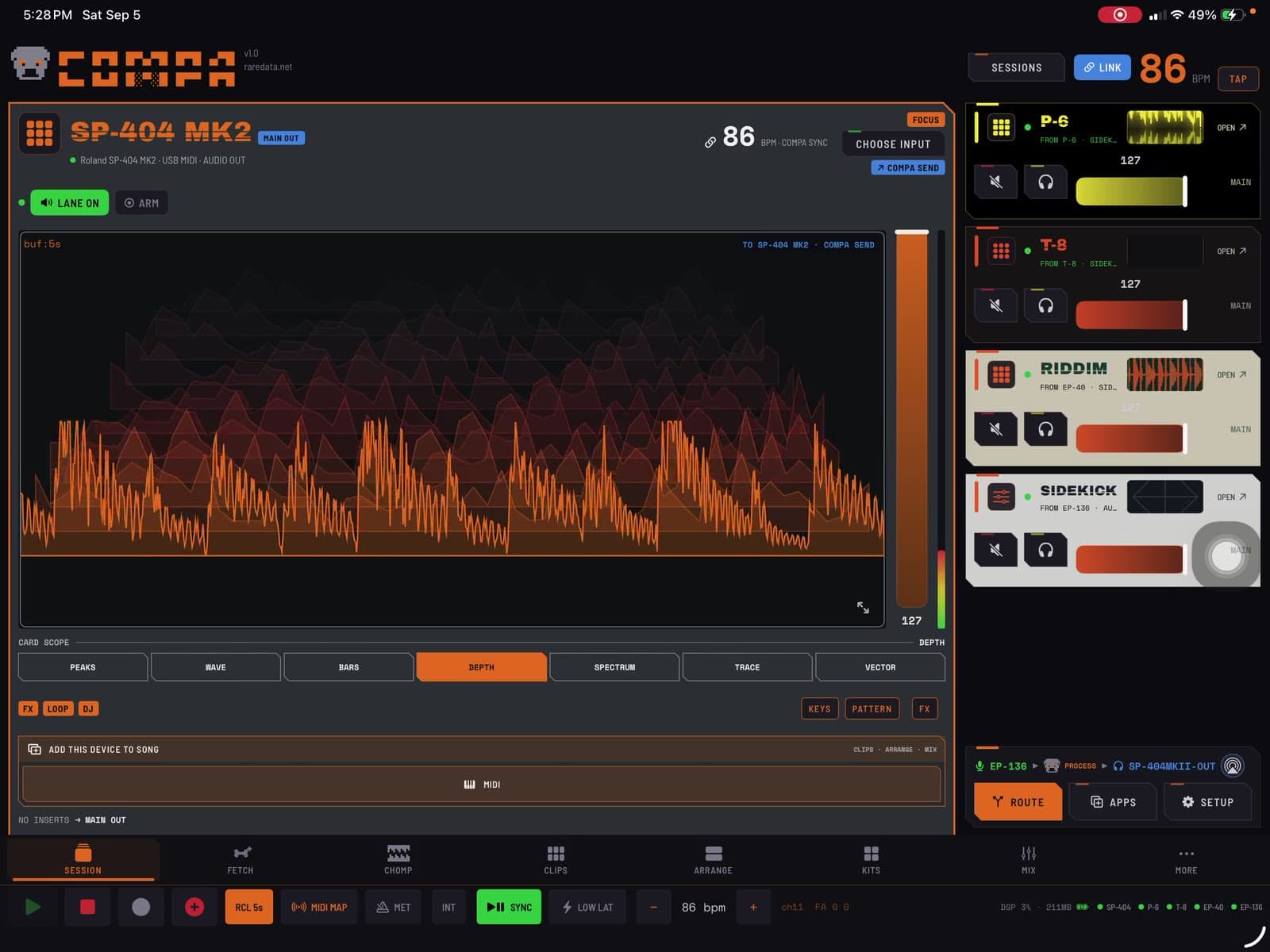

Every screen · Real UI
What you actually see on the Pi.
Captured directly from the app. No placeholder mockups — this is what Compa looks like when you're using it.
Free · MIT · Community driven
Flash an SD card. Plug in. Ship.
Compa OS is a complete Raspberry Pi image — Pi OS Lite plus the Compa app, autostarting on first boot. Grab the latest build below, write it to an SD card with Raspberry Pi Imager, and you're live.
~720 MB compressed (~4–5 GB on the card). Boots on Pi 3B and up. Manual install path (existing Pi OS) is in the README.
